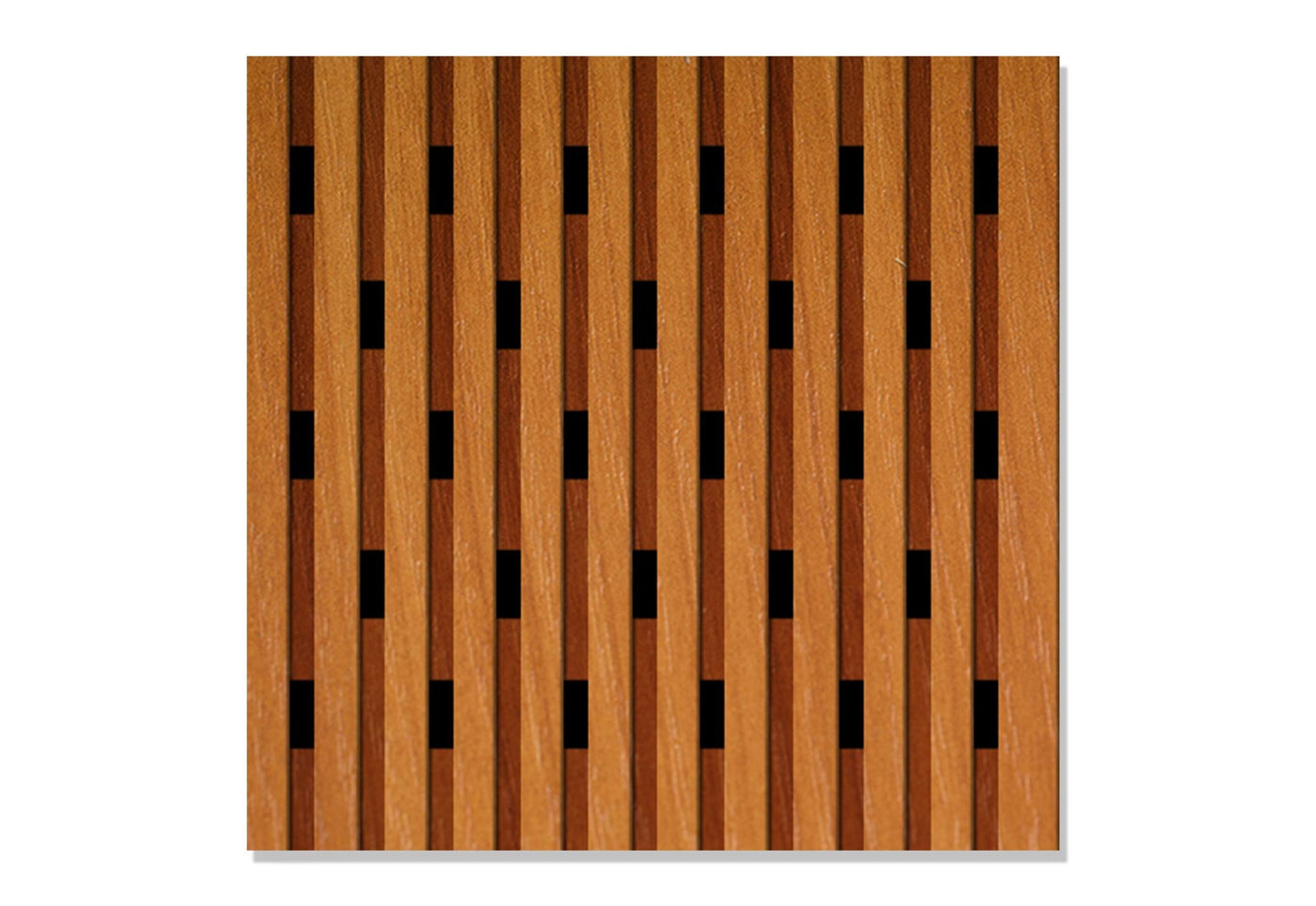

grooved wood panel (g8)

grooved acoustic panel

With TerrAcoustics, there are no limits but your imagination. With a wide array of styles and finishes to choose from, you can achieve the space you’ve envisioned for your clients at a price they can afford. As an architect or designer, freshness of design can be a distinct competitive advantage. That’s why offering new options in design materials is so important to TerrAcoustics. Our mission is to help you create beautiful and acoustically superior interiors utilizing the sustainability of natural wood.

When your interiors require: 1) beauty, 2) durability, and 3) cost-effectiveness that will delight your clients and their budgets think TerrAcoustics. We’ll work with you to customize a space, large or small, to meet your client’s specific needs. Contact TerrAcoustics™ or your authorized dealer today for more information and/or free sample panels. We look forward to serving you and becoming your partner in acoustically superior, breathtakingly beautiful interiors.

Sound Absorption Data

Mounting Methods:

The test specimen consisted of two G Series Murano Acoustics grooved acoustical panels. Each of the panels was 1.22 m (48 inches) by 2.44 m (96 inches) by 19 mm (3/4 inch) thick. A 25.4 mm (1 inch) layer of TerraCore Poly HD was placed on the chamber floor. The panels were placed side by side on top of the polyester foam to form a 2.44 m (96 inches) by 2.44 m (96 inches) sample.



Installation shall be done only when all wet work has been completed and dried. Temperature and humidity conditions must match the normal conditions in the occupied space. The humidity of the room shall not drop under 25% or exceed 55%. The HVAC system shall be functioning continuously before, during and after installation.

It is important that plenums have proper ventilation, especially in high moisture areas. There shall be no excessive build up of heat in the installation areas. Prior to the start of installation, all exterior windows and doors are to be in place, glazed, and weather-stripped. The roof is to be watertight.

Mechanical, electrical, and other utility service installations beyond the wall or ceiling plane shall be completed. No materials should rest against, or wrap around, the wall or ceiling attachment components or connecting hangers. Review the TerrAcoustics Installation Guidelines for details on the appropriate project site conditions prior to installation.

TerrAcoustics panels shall be delivered to the project site in original, unopened packages. Any damage to package material, discrepancy in quantity or errors should be put in writing and submitted immediately to the Contractor. The TerrAcoustics panels shall be stored flat and level, in a fully enclosed space as per section of these specifications.

The panels shall be stored in the room in which they will be installed at least 96 hours before the installation takes place and allow to acclimatize. Factory finished products require up to a week or more on site for acclimatization. The room conditions, namely the room’s temperature and humidity shall match the conditions that will be normal in the occupied space.

Store the TerrAcoustics panels off the ground, on a pallet. TerrAcoustics panels shall be handled in a manner that will protect them from any type of damage.

Upon completion of the TerrAcoustics installation, remove dust from surface, grooves and penetrations by vacuuming using only a soft brush. DO NOT scratch wood surface with sharp metal or plastic vacuum attachment. Remove pencil marks with soft erasure. Remove general surface dirt, dust, grease, oils, and fingerprints with a soft damp warm cloth with a mild diluted cleaning agent. Wipe dry with a soft dry cloth. Do not use cleaners with grit or cloths that could scratch the wood surface.


[sidebar action="start" type="specs" title="additional specs"]
 core mdf
Single Diameter Holes on 16mm Centers on the back of Panels yes
insulation optional
Flat Width 5mm (3/16")
Groove Width 3mm (1/8")
Open Area (Front) 37.5
Open Area (Back) 24.85
Soundteck Acoustic Area on the Back Yes
[sidebar action="end" type="specs"]
